What are the BlueZoo sensor specs?

BlueZoo's current sensor model is the Black Panther. Prior sensor models are described in the table below.

Alternatively, a BrightSign digital signage media player or a Bluefin digital signage can also act as a BlueZoo sensor.

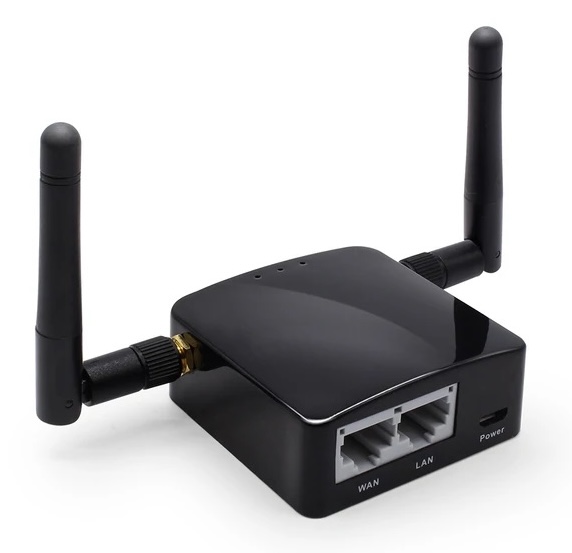

	BLACK PANTHER INTERNAL ANTENNAS	BLACK PANTHER EXTERNAL ANTENNAS
Antenna gain	1dBi	2dBi
Ethernet backhaul	RJ45 10/100Mbps	RJ45 10/100Mbps
Wi-Fi backhaul	2.4GHz, 802.11b/g/n	2.4GHz, 802.11b/g/n
Cell backhaul	Optional with USB dongle	Optional with USB dongle
Power supply	5V/1A, micro USB port or optional PoE	5V/1A, micro USB port or optional PoE
Storage temperature	-20 ~ 70ºC	-20 ~ 70ºC
Working temperature	0 ~ 40°C	0 ~ 40°C
Humidity	10 - 90%	10 - 90%
Power consumption	2W	2W
Dimension, Weight	58 x 58 x 25 mm, 40g 2.3 x 2.3 x 0.9 in, 1.6 oz	58 x 58 x 25 mm, 40g 2.3 x 2.3 x 0.9 in, 1.6 oz
Certifications	CE, IC, RoHS, FCC, MIC (Japan), ICASA (South Africa), CE-RED	CE, IC, RoHS, FCC, MIC (Japan), ICASA (South Africa), CE-RED

Find below the technical specs of prior BlueZoo sensors:

PRIOR SENSOR MODELS	ARCTIC FOX	WHITE STORK	YELLOW MONGOOSE	WHITE RHINO
Antenna	Internal or external antenna	Internal antenna	Internal antenna	Internal or external antennas
Ethernet backhaul	RJ45 10/100Mbps	RJ45 10/100Mbps	RJ45 10/100Mbps	RJ45 10/100Mbps
Wi-Fi backhaul	2.4GHz, 802.11b/g/n (external dongle)	N/A	2.4GHz, 802.11b/g/n (internal)	2.4GHz, 802.11b/g/n (external dongle)
Cell backhaul	N/A	N/A	N/A	SIM card slot
Power supply	5V/1A, micro USB port	5V/1A, micro USB port or PoE	5V/1A, micro USB port	5V/2A, micro USB port
Storage temperature	-20 ~ 70ºC	-20 ~ 70ºC	-20 ~ 70ºC	-20 ~ 70ºC
Working temperature<>	0 ~ 40°C	0 ~ 40°C	0 ~ 40°C	0 ~ 40°C
Humidity	10 - 90%	10 - 90%	10 - 90%	10 - 90%
Power consumption	<1W	<1W	<2.75W	3W
Dimension, Weight	58 x 58 x 25 mm, 40g 2.3 x 2.3 x 0.9 in, 1.6 oz	58 x 58 x 25 mm, 40g 2.3 x 2.3 x 0.9 in, 1.6 oz	58 x 58 x 25 mm, 40g 2.3 x 2.3 x 0.9 in, 1.6 oz	105 x 72 x 27 mm, 170g 4.2 x 2.9 x 1.1 in, 6 oz
Certifications	CE, RoHS, FCC, RCM	CE, RoHS, FCC	CE, RoHS, FCC, RCM, MIC (Japan)	CE, RoHS, FCC

The White Rhino sensor has different cell modem versions that are compatible with regional regulations (Contact us for other territory availability).

* Compatible with AT&T and T-Mobile networks in the United States
