BlueZoo's current sensor model is the Black Panther. Prior sensor models are described in the table below.
Alternatively, a BrightSign digital signage media player also acts as a BlueZoo sensor.

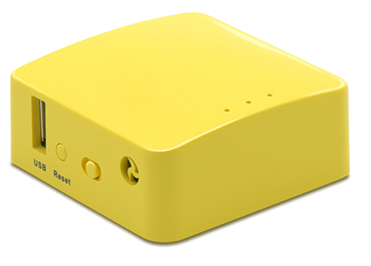

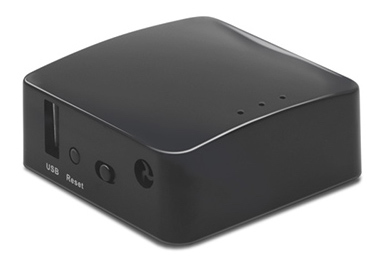

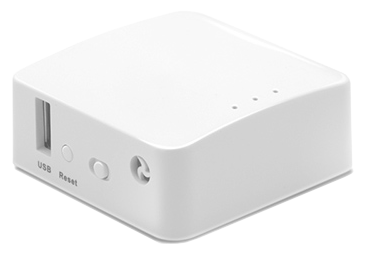

BLACK PANTHER | ARCTIC FOX | WHITE STORK | YELLOW MONGOOSE | WHITE RHINO | |
---|---|---|---|---|---|
Antenna | Internal or external antenna | Internal or external antenna | Internal antenna | Internal antenna | Internal or external antennas |
Ethernet backhaul | RJ45 10/100Mbps | RJ45 10/100Mbps | RJ45 10/100Mbps | RJ45 10/100Mbps | RJ45 10/100Mbps |
Wi-Fi backhaul | 2.4GHz, 802.11b/g/n (internal) | 2.4GHz, 802.11b/g/n (external dongle) | N/A | 2.4GHz, 802.11b/g/n (internal) | 2.4GHz, 802.11b/g/n (external dongle) |
Cell backhaul | Optional with USB dongle | N/A | N/A | N/A |
SIM card slot
|
Power supply | 5V/1A, micro USB port or optional PoE | 5V/1A, micro USB port | 5V/1A, micro USB port or PoE | 5V/1A, micro USB port | 5V/2A, micro USB port |
Storage temperature
|
-20 ~ 70ºC | -20 ~ 70ºC | -20 ~ 70ºC | -20 ~ 70ºC | -20 ~ 70ºC |
Working temperature
|
0 ~ 40°C | 0 ~ 40°C | 0 ~ 40°C | 0 ~ 40°C | 0 ~ 40°C |
Humidity | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
Power consumption | <2W | <1W | <1W | <2.75W | <3W |
Dimension, Weight |
58 x 58 x 25 mm, 40g |
58 x 58 x 25 mm, 40g |
58 x 58 x 25 mm, 40g 2.3 x 2.3 x 0.9 in, 1.6 oz |
58 x 58 x 25 mm, 40g 2.3 x 2.3 x 0.9 in, 1.6 oz |
105 x 72 x 27 mm, 170g 4.2 x 2.9 x 1.1 in, 6 oz |
Certifications | CE, RoHS, FCC, MIC (Japan) | CE, RoHS, FCC, RCM | CE, RoHS, FCC | CE, RoHS, FCC, RCM, MIC (Japan) | CE, RoHS, FCC |

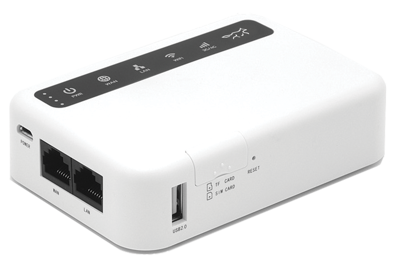

The White Rhino sensor has different cell modem versions that are compatible with regional regulations (Contact us for other territory availability).
White Rhino (MiFi) versions | North America (A-version)* |
Europe and Middle-East (E-Version) | China (C-Version) |
---|---|---|---|
FDD LTE | B2/B4/B5/B12/B17 | B1/B3/B5/B7/B8/B20 | B1/B3/B8 |
TDD LTE | B38/B39/B40/B41 | ||
TDSCDMA | B34/B39 | ||
UMTS | B2/B4/B5 | B1/B5/B8 | B1/B8 |
GSM | 850/1900MHz | 850/900/1800/1900MHz | 900/1800MHz |
* Compatible with AT&T and T-Mobile networks in the United States
